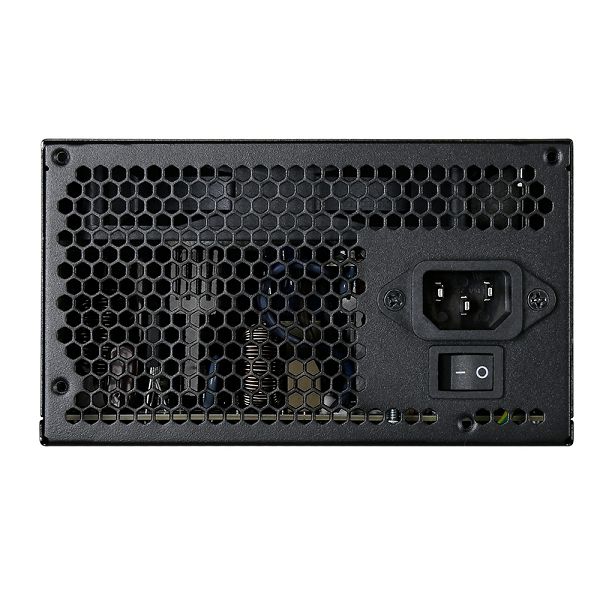

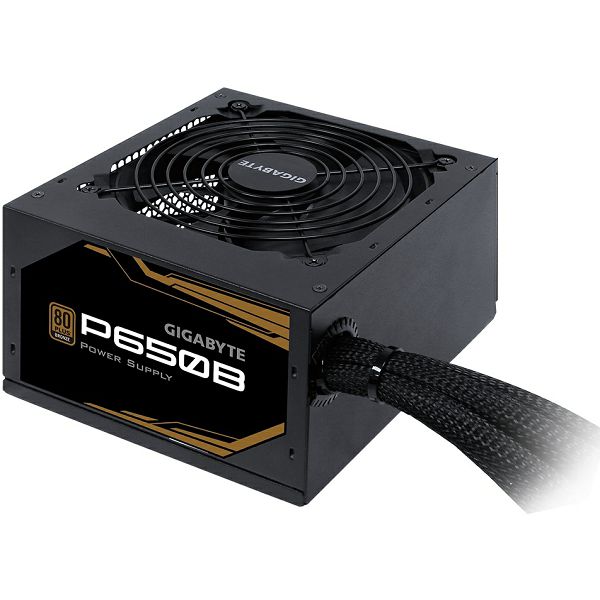

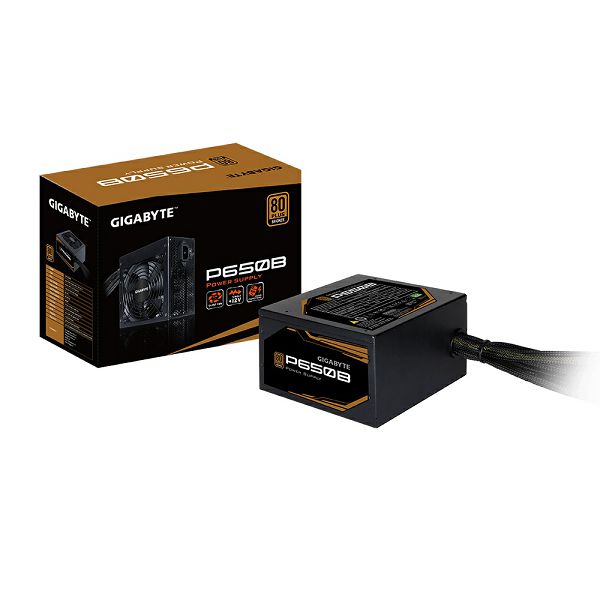

Napajanje Gigabyte P650B, 650W, 80+ Bronze, ATX

80 Plus Bronze Certified.
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency.
.
Reliable Mesh Braided Cable P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case..
.
100% Japanese Capacitors All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability..
.
Single +12V Rail.
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation..
.
120mm Hydraulic Bearing (HYB) Fan.
120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time..
.
Specifications:.
Power Device Type: Power Supply.
Power Device Location: Internal.
Input Voltage: AC 100-240 V.
Input Frequency: 50/60 Hz.
Output Voltage: DC 3.3/5/±12 V.
Maximum Output Power: 650 W.
Circuit Protection: Over Voltage Undervoltage Over Current Short Curcuit Protection Over Power.
Power Adapter and Power Supply Features: Active PFC.
80 Plus Certification: 80 Plus Bronze.
Efficiency: 85%.
Certifications:.
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE.
+3.3V: 18 A.
+5V: 15 A.
+12V: 54 A (648 W).
-12V: 0.3 A (3.6 W).
+5VSB: 2.5 A (12.5 W).
20+4-pin Main Connector: 1.
4/8-pin +12V Power Connector: 1.
4-pin Peripheral Power Connector: 3.
4-pin Floppy Drive Connector: 1.
15-pin S-ATA Connector: 6.
6/8-pin PCI Express Connector: 1.
Fans Installed Quantity: 1.
Fan Diameter: 120 mm.
Mean Time Between Failures: 100000 hr
